Sorry, this product is no longer available!
Campagnolo H11 Carbon Ultra Torque Chainset - 11 Speed is no longer available at Merlin Cycles. However you may find an alternative or updated product below.
Campagnolo H11 Carbon Ultra Torque Chainset - 11 Speed
Full Screen
Exit Full ScreenPreviousNext
Campagnolo H11 Carbon Ultra Torque Chainset - 11 Speed

This item was discontinued 10th August 2023.

If you require help finding an alternative to this product please contact customer services.

Code:: CMCK0810
Campagnolo H11 Carbon Ultra Torque Chainset - 11 Speed

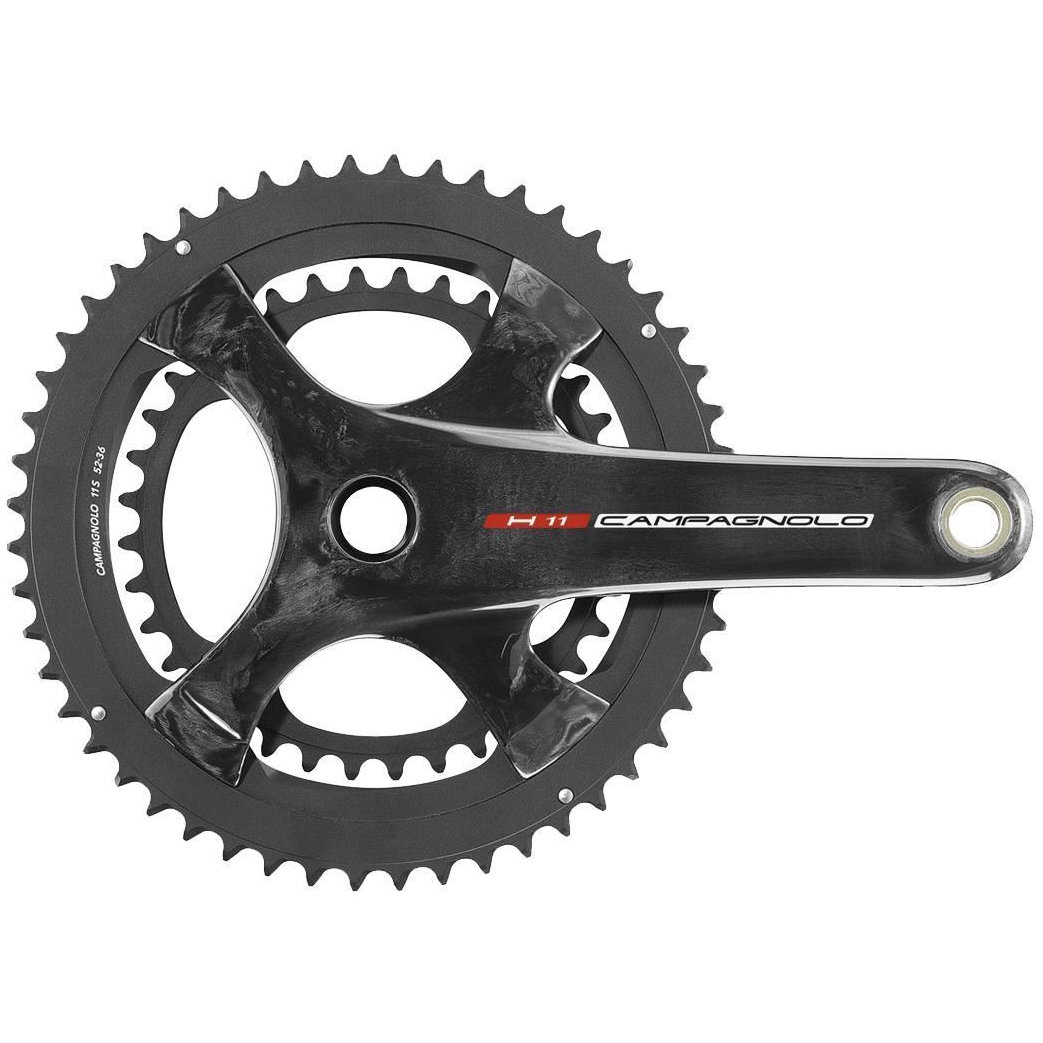

The Campagnolo H11 Ultra Torque Crankset is designed with the intention of being used with the H11 groupsets, which is the Campagnolo disc brake standard. Featuring hollow carbon crank arms and a hollow spider, it provides maximum stiffness at a competitive weight. Designed for Disc Brake Hub Spacing. The H11 crankset standard is required for use with H11 Ergopower shifter/brake levers for true drivetrain efficiency. The crank spider has been placed outwards from the frame to adjust for 135mm and 142mm disc brake hub spacing without needing to change the Q-factor. Campagnolo has succeeded in providing the same level of exceptional drivetrain performance as the Campagnolo rim brake groupsets.

Ultra-Torque: Campagnolo found a way to permanently conjoin the semi-axles of the bottom bracket to the respective crankset arms. This redesign made it possible to considerably reduce the lateral dimensions at the axle level and prevent annoying contact with the ankles when turning the pedals. Assembly is simplistic: one single oversize bolt is enough to integrate the two semi-axles. Regarding torque transmission efficiency, this system is equally as effective as a single piece axle. Furthermore, despite the narrow side profile, Campagnolo managed to position the bearings outside the bottom bracket shell, resulting in greater axle rigidity from the increased axle diameter. This breakthrough was obtained by using an ingenious mechanical system derived from many years' motoring experience in the rotation axle and engine shaft coupling design known as the Hirth joint.


  • Material: Carbon
  • Chainline/Hub Compatibility: 135mm and 142mm rear spacing
  • Pedal Spindle: 9/16"
  • Bottom Bracket Type: Threaded
  • No. Of Chainrings: Double
  • Speed: 11
  • Weight: 603g
JN Excellent and stiff crankset
Jimmy Second buy for my spare bike, value for money.!
Mr Bringué Impressive Chainset, Delivery fast, customer service giving good advice. I will for sure buy again at Merlín Cycles
Dan Lee Very light, easy installation, worked well with my rim brake components, though it was designed to work with disc brakes. Also, very smooth bearing compared to my potenza chainset
