Kinesis Range Flat Bar E-Bike
The Range Flat Bar e-bike is an elegant electric fitness bike that makes lightwork of hills and allows you to travel faster, further and more frequently than ever before. It features a lightweight Aluminium frame paired with the excellent Fazua Evation motor system, for a carefree and enjoyable experience on every journey.

Fazua  Motor
The Fazua system kicks in below 15.5mph, providing you with up to 400 Watts of assistance, offering you a welcome helping hand when moving off from a standstill, or taking on hills. Above 15.5mph, the Fazua motor seamlessly decouples from the drivetrain, so you can push on without any extra resistance. With three customisable levels of assistance and an integrated top tube remote, you remain in complete control of the level of power that you need. Need to go further? Spare batteries are available and easy to change, so you can carry as much battery as you need.

Take It All On...
The Range is equipped with reliable Shimano Deore gears and powerful Deore brakes, for smooth faultless shifting and powerful controlled braking. The inclusion of high volume all-terrain tyres means that Range is perfectly equipped for journeys off road, whether it’s a canal path, or a trip into the woods. Regardless of whether you ride for fun, fitness or exploration, Range is a rewarding ride that is the perfect complement to a modern lifestyle. Empower you riding and reach further with the Range fitness E-bike.

Key Features
  • Aluminium Frame with 50c Tyre Clearance
  • Galactic Iridescent Paint Job
  • Full Carbon RANGE Fork with Luggage Mounting Points
  • Fazua Evation Drive System with Top Tube Remote
  • Removable 252Wh Battery
  • Rack and Mudguard Compatible
  • Shimano Deore 1x10 Drivetrain
  • Weight: 14.9kg (size medium)

Frameset
  • Frame: Range Alloy
  • Fork: Range Carbon

Wheels
  • Wheels: Sector GCe E-Specific - 700c
  • Tyres: WTB Byway - 700x44c

Drivetrain
  • Rear Derailleur: Shimano Deore M6000 - 10 Speed
  • Front Derailleur: N/A
  • Gear Levers: Shimano Deore M6000 (RH Only)
  • Chainset: Praxis E-Crank - 42T
  • Cassette: Shimano HG500 - 11/42T
  • Chain: Shimano - 10 Speed
  • Pedals: Not included

Components
  • Saddle: Selle Italia X3
  • Seatpost: Ritchey 2-Bolt
  • Handlebars: Ritchey MTB Rizer Trail
  • Stem: Ritchey 4-Axis
  • Brake Calipers: Shimano BR-300

Motor & Battery
  • Motor: Fazua 250Wh (Removeable)
  • Battery: Fazua 252Wh
  • Display: Fazua
  • Switch: Fazua
  • Charger: Fazua

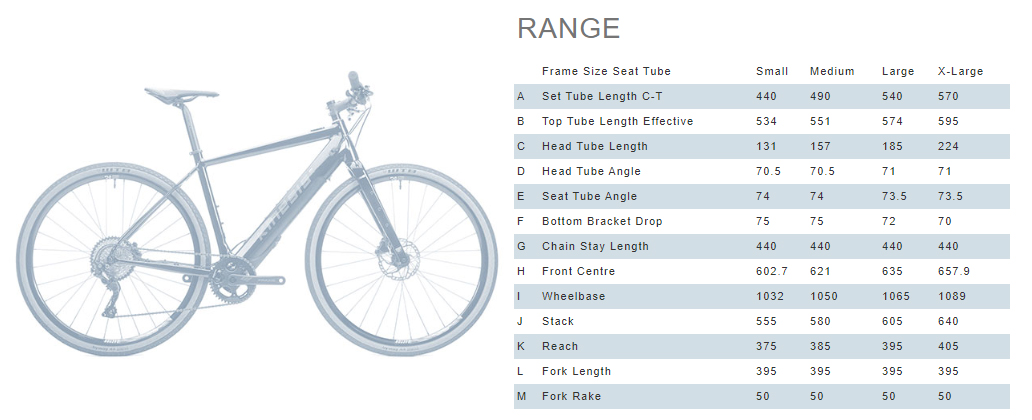

Geometry

Please Note: The current build time for bikes can be found at the checkout.
