Sorry, this product is no longer available!
Merlin CX-04 Carbon Disc Cyclocross Frameset is no longer available at Merlin Cycles. However you may find an alternative or updated product below.
Merlin CX-04 Carbon Disc Cyclocross Frameset
Full Screen
Exit Full ScreenPreviousNext
Merlin CX-04 Carbon Disc Cyclocross FramesetMerlin CX-04 Carbon Disc Cyclocross FramesetMerlin CX-04 Carbon Disc Cyclocross FramesetMerlin CX-04 Carbon Disc Cyclocross FramesetMerlin CX-04 Carbon Disc Cyclocross FramesetMerlin CX-04 Carbon Disc Cyclocross FramesetMerlin CX-04 Carbon Disc Cyclocross FramesetMerlin CX-04 Carbon Disc Cyclocross FramesetMerlin CX-04 Carbon Disc Cyclocross Frameset

Merlin CX-04 Carbon Disc Cyclocross Frameset

View all Cyclocross & Gravel Bike Frames

This item was discontinued 2nd December 2021.

If you require help finding an alternative to this product please contact customer services.

Code:: HG80DKIT53
Merlin CX-04 Carbon Disc Cyclocross Frameset
The Merlin CX-04 is our super-lightweight carbon cyclocross frameset that’s built ready to race. With a carbon frame packed full of technical features the CX-04 has been designed to handle any of the course-conditions thrown at you in a typical cyclocross season; from dry hard-packed racing in early September through to the most demanding, super-muddy conditions you’ll encounter in late December the Merlin CX-04 performs flawlessly.

Frame:
  • 68% 24 Tons Intermediate Modulus Carbon
  • 26% 30 Tons High Modulus Carbon
  • 6% High-Impact Strength Liquid Crystal Polymer Carbon
  • 12mm x 142mm Thru Axle Rear Hub
  • 27.2mm Seatpost
  • English thread Bottom Bracket
  • Headset Not included (Fully Intergrated Headset 1 1/8"-1 1/2")

Fork:
  • High Modulus Full Carbon – 12mm x 100mm Thru Axle

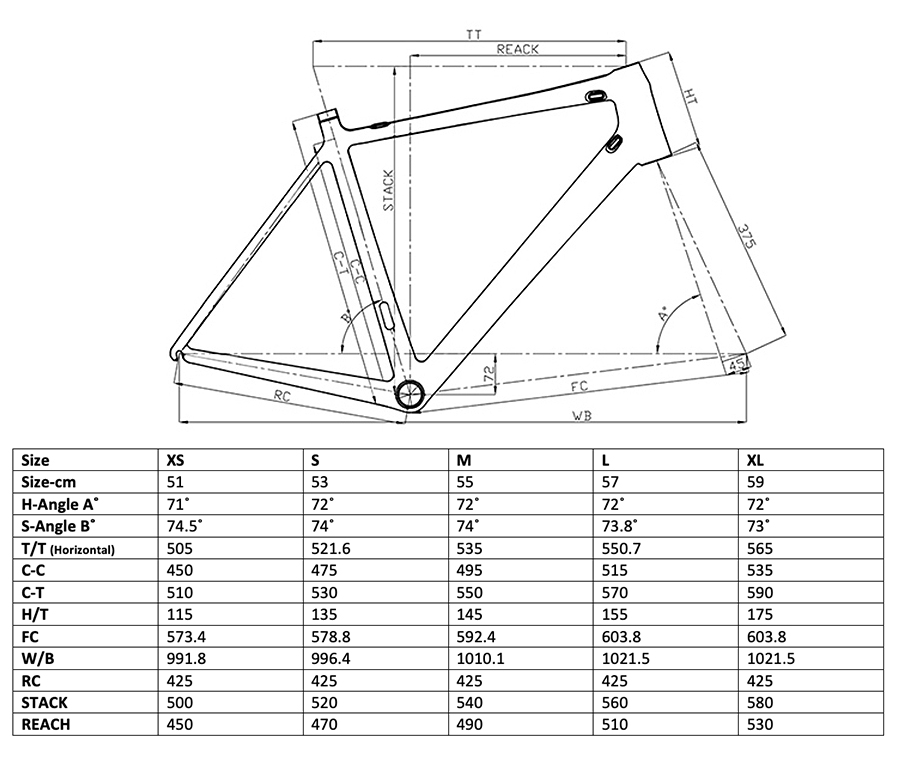

Geometry Information
