Pinarello Dogma F10 Road Frameset - 2020
Full Screen
Exit Full ScreenPreviousNext
Pinarello Dogma F10 Road Frameset - 2020Pinarello Dogma F10 Road Frameset - 2020Pinarello Dogma F10 Road Frameset - 2020Pinarello Dogma F10 Road Frameset - 2020Pinarello Dogma F10 Road Frameset - 2020Pinarello Dogma F10 Road Frameset - 2020
Multi-Buy Savings!
Code: DOGMA-F10-20
Pinarello Dogma F10 Road Frameset - 2020
The legendary Dogma F10 is one of the fastest bikes in the world. The machine was used by the winner of Tour de France in  2016 & 2017 (Chris Froome), 2018 (Geraint Thomas), as well as countless other top riders and races around the globe.

It retains the super-efficient Flatback™ profiles from  the Dogma F8, but inherits a new design of the down tube from the Pinarello Bolide TT bike which shields the water bottles from the airflow, while further increasing the lateral stiffness.

Features
  • Asymmetric Frame
  • Think2 System with E-Link™
  • ICR™ Internal Cable Routing
  • Seatclamp TwinForce
  • 3XAir™ two positions available
  • for the second bottle
  • FlatBack Profile
  • UCI Approved

Frame
  • Frame: Carbon Torayca T1100 1K Dream Carbonwith Nanoalloy Technology
  • Fork: Carbon Fork ONDA F10 with ForkFlap™
  • Bottom Bracket: Italian
  • Seatpost Diameter: Pinarello
  • Max Tyre: 700x25mm

Includes:
  • Frame
  • Fork
  • Seatpost
  • Headset

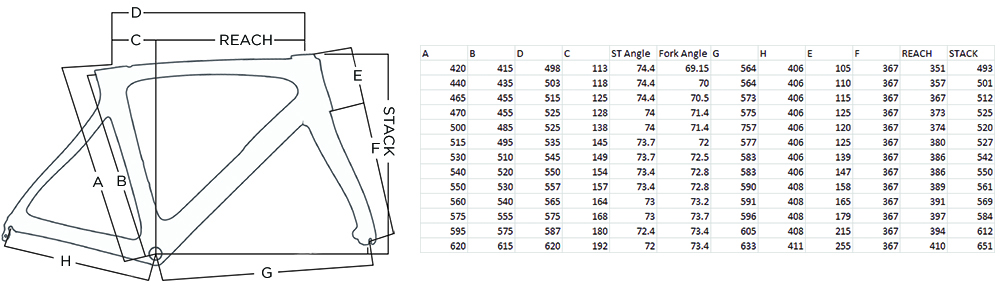

Geometry
