Code: 8520012
Pinarello Gan Disc QR Road Frameset
Gan Disk takes after the legendary Dogma F8, but with several specific features make it a frame less intense, while maintaining intact the style and feeling that Pinarello offer.

The Braking system has been upgraded to flat mount hydraulic disc brakes, in order to increase the braking power. Quick release drop-outs help to change wheels to make this frames suitable for all types of riding.

Features
  • FlatBack Profile
  • Asymmetric frame
  • Flat Mount Disc brakes
  • Quick release drop-outs

Frame
  • Frame: T600 Carbon Asymmetric, Internal Cable Routing
  • Fork: Carbon ONDA
  • Axles: Quick Release
  • Bottom Bracket: Italian
  • Seatpost Diameter: Pinarello
  • Disc Mount: Flat Mount
  • Max Tyre: 700x25mm

Includes:
  • Frame
  • Fork
  • Seatpost
  • Headset

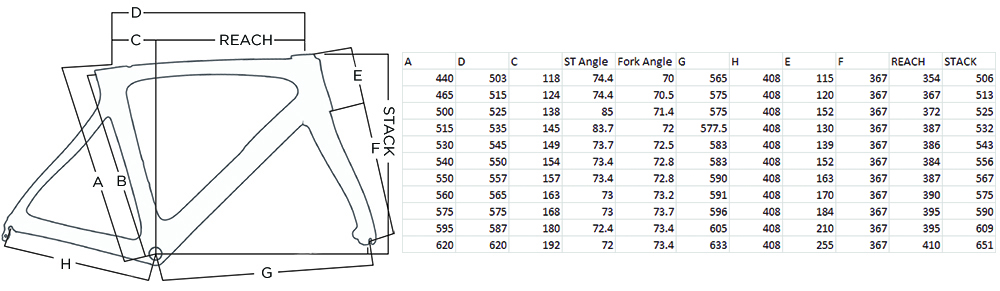

Geometry
