Pinarello Grevil Gravel Frameset - 2020
Full Screen
Exit Full ScreenPreviousNext
Pinarello Grevil Gravel Frameset - 2020Pinarello Grevil Gravel Frameset - 2020Pinarello Grevil Gravel Frameset - 2020

This item was discontinued 6th July 2020.

If you require help finding an alternative to this product please contact customer services.

Code: 85020131
Pinarello Grevil Gravel Frameset - 2020
With the long history Pinarello pack into every frame, producing a legendary gravel frameset has been in the pipeline. Pinarello has bestowed the Grevil Carbon Gravel frame with strong design features. The T700 UD carbon frame has dropped chainstay to give more tyre clearance whilst maintaining a road-like chain line, and the asymmetric downtube and bottom bracket area add stiffness where needed to cope with drivetrain stress.

The frame has a shorter reach and higher stack height than their road bikes but still feels right at home on tarmac as well as gravel. The Grevil has inherited aero tubes and the Fork Flap from the Dogma series to further enhance the bikes speed credentials. The frame can be built with either 700c or 650B wheels and electronic or mechanical groupsets.

Features
  • Asymmetric frame
  • Twin Arms Asymmetric
  • Flexstays
  • Dedicated Onda Fork With Fork Flap
  • Aero seatpost
  • FSC: Frontal seat clamp, integrated and aerodynamic
  • Think 2 to fit electronical or mechanical groupsets on the same frame
  • ICR: Internal cable routing

Frame
  • Frame: T700 Torayaca UD Carbon, Internal Cable Routing
  • Fork: Carbon ONDA with ForkFlap
  • Axles: Front 12x100 / Rear 142x12
  • Bottom Bracket: Threaded Italian
  • Seatpost Diameter: Pinarello
  • Disc Mount: Flat Mount
  • Max Tyre: 700x42mm / 650B x 2.1"

Includes:
  • Frame
  • Fork
  • Seatpost
  • Headset
  • Axles

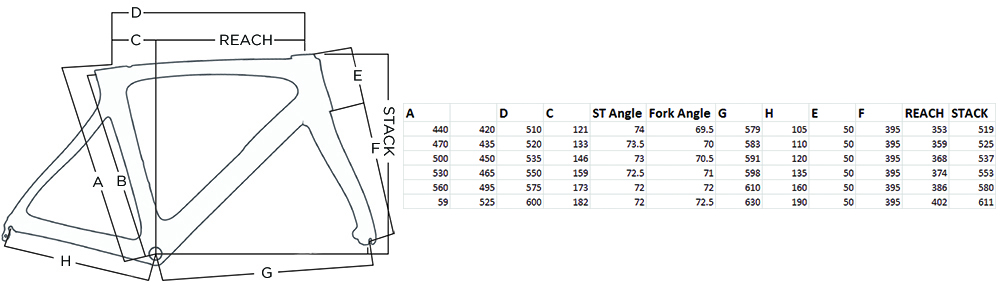

Geometry
