Pivot Firebird 29 Enduro Carbon Frameset
Enduro courses. World Cup Downhill courses. It’s hard to tell the difference between the two these days. Well, right up until the point when you have to grind your way to the top of the absolute hairball descent that would be enduro. And that is also where the Firebird 29 enters the picture with its speed generating 29er wheels and a penchant for kicking ass. The Firebird 29's big wheels gobble up miles with ease, roll right over the gnar and add insane levels of traction to the mix. But this is no monster truck. The Firebird 29 is a lightweight machine that boasts a poppy, lively feel that long-travel 29ers have never possessed. Until now.

Features
  • Designed for a 170mm fork with an offset of 44mm
  • Bomber—yet ultra light—full carbon frame featuring leading edge carbon fiber materials and Pivot's proprietary molding technology
  • 162mm of supple-yet-efficient dw-link™ suspension
  • Ultra-adjustable Fox Float X2 rear shock
  • Long-and-low geometry for a confident, stable stance Short, 431mm chainstays make easy work of the tightest trails
  • Adjustable geometry with a flip-chip upper link mount and lower headset cup
  • Compatible with both 29 and 27.5+ wheel sizes without compromise thanks to the adjustable geometry
  • Fits tyres up to 29x2.6" or 27.5x2.8" wide
  • Super Boost Plus 12 x 157mm rear spacing adds stiffness and control
  • Hassle-free, full-length, internal cable routing

Specification
  • Frame Material: Carbon
  • Wheel Size: 29"
  • Rear Shock: Fox Float X2 (162mm Travel)
  • BB Type: Press-fit BB92
  • Rear Axle: 12x157mm Super Boost
  • Headset: Zero Stack 49.6mm Top / Zero Stack 56mm Bottom
  • Cable Routing: Internal
  • Seatpost Diameter: 31.8mm
  • Dropper Routing: Internal
  • Max Rotor Size: 203mm

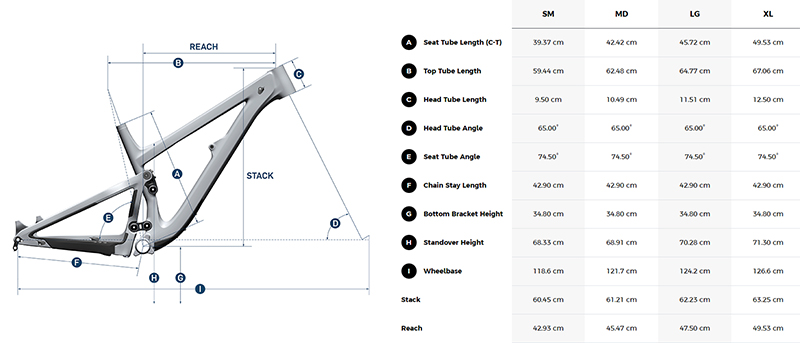

Geometry
