Sorry, this product is no longer available!
Pivot Firebird Carbon MTB Frame is no longer available at Merlin Cycles. However you may find an alternative or updated product below.
Pivot Firebird Carbon MTB Frame
Full Screen
Exit Full ScreenPreviousNext
Pivot Firebird Carbon MTB Frame

This item was discontinued 9th April 2021.

If you require help finding an alternative to this product please contact customer services.

Code:: P-FS-17-FIREBIRD
Pivot Firebird Carbon MTB Frame
The Firebird 27.5" frame is the no-compromise, Holy Grail of long travel mountain bikes both an enduro bike that devours park runs and a technical climber that relishes huge lines and blazing descents. Building on its reputation as the bike for all-day missions on black diamond terrain, the Firebird now features Phoenix DH-inspired long reach measurements combined with a 65-degree head angle to deliver unmatched stability and handling.

Features
  • Full carbon frame featuring leading edge carbon fibre materials and Pivot's proprietary hollow core internal moulding technology
  • Phoenix DH-influenced long and low geometry
  • Short 430mm chainstays
  • 170mm DW-Link™ rear suspension with upper clevis and linkage and double wishbone rear triangle
  • 27.5" wheel compatible, fits tyres up to 2.5" wide
  • Boost™ spacing front and rear
  • Front derailleur compatible with Pivot’s stealth E-Type mounting system.
  • 180mm rear post mounts (no adaptor required)
  • Pivot Cable Port system for easy internal routing of shifters, brakes and droppers and full Di2 Integration
  • Internal dropper post compatible
  • Cold forged alloy linkages with Enduro Max Cartridge Bearings
  • New ultra quiet low durometer rubberized frame protection

Specification
  • Frame: Firebird Carbon, Boost
  • Rear Shock: Fox Float Factory X2 rear shock - 170mm Travel
  • Axle: 148x12mm
  • Bottom Bracket: Press-Fit
  • Chain Guide Mount: ISCG05
  • Max Tyre: 27.5 x 2.5"

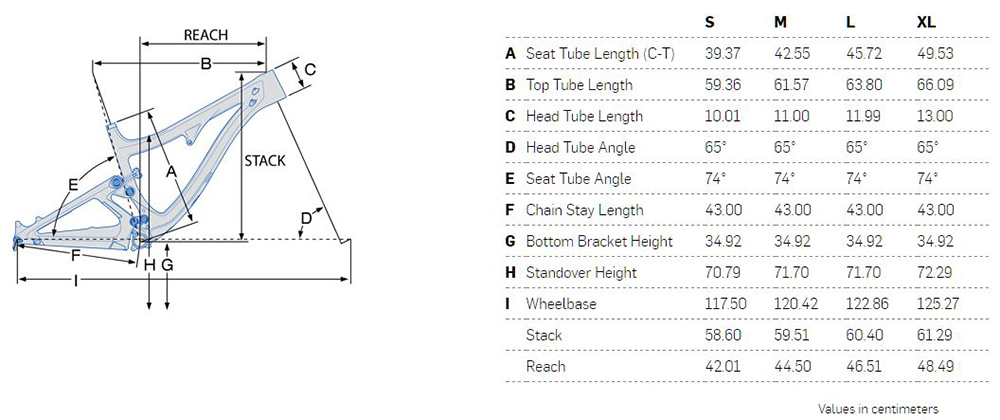

Geometry Information
