Sorry, this product is no longer available!
Pivot Switchblade V1 Carbon Enduro Frameset is no longer available at Merlin Cycles. However you may find an alternative or updated product below.
Pivot Switchblade V1 Carbon Enduro Frameset is no longer available at Merlin Cycles. However you may find an alternative or updated product below.
Pivot Switchblade V1 Carbon Enduro Frameset
This item was discontinued 23rd March 2023.
If you require help finding an alternative to this product please contact customer services.
Code:: P-FS-17-SWB
Pivot Switchblade V1 Carbon Enduro Frameset
Versatility—that’s the Switchblade’s calling card and the reason this bike immediately rocketed to the top of several cycling media best-of lists. As a long-travel 29er, the Switchblade is a next-level enduro bike that begs for fast, steep and technical trails. As a 27.5+ machine, the Switchblade combines spider-man traction with the shortest chainstays in the category for the ultimate all-terrain, all-conditions ride. One bike. Any trail.
Features
- Designed for a 150mm - 160mm fork with an offset of 44mm
- Fits 29" and 27.5+ tyres up to 3.25" wide
- Long and low geometry
- Ultra short 428mm chainstays beat every other bike in the category
- 135mm dw-link rear suspension with upper clevis and linkage and double wishbone rear triangle
- New ultra-quiet low durometer rubberized frame protection
- Front derailleur compatible
Specification
- Frame Material: Carbon
- Wheel Size: 29"
- Grey Frame Rear Shock: Fox Float DPX2 (120mm Travel)
- Red Frame Rear Shock: Fox Float DPS (120mm Travel)
- BB Type: Press-fit BB92
- Rear Axle: 12x157mm Super Boost
- Headset: Zero Stack 44mm Top / Zero Stack 56mm Bottom
- Cable Routing: Internal
- Seatpost Diameter: 30.9mm
- Dropper Routing: Internal
- Max Rotor Size: 180mm

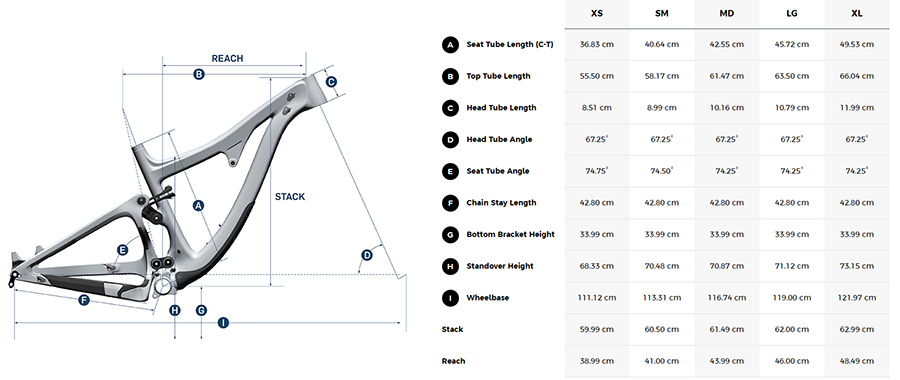

Geometry
.jpg)
