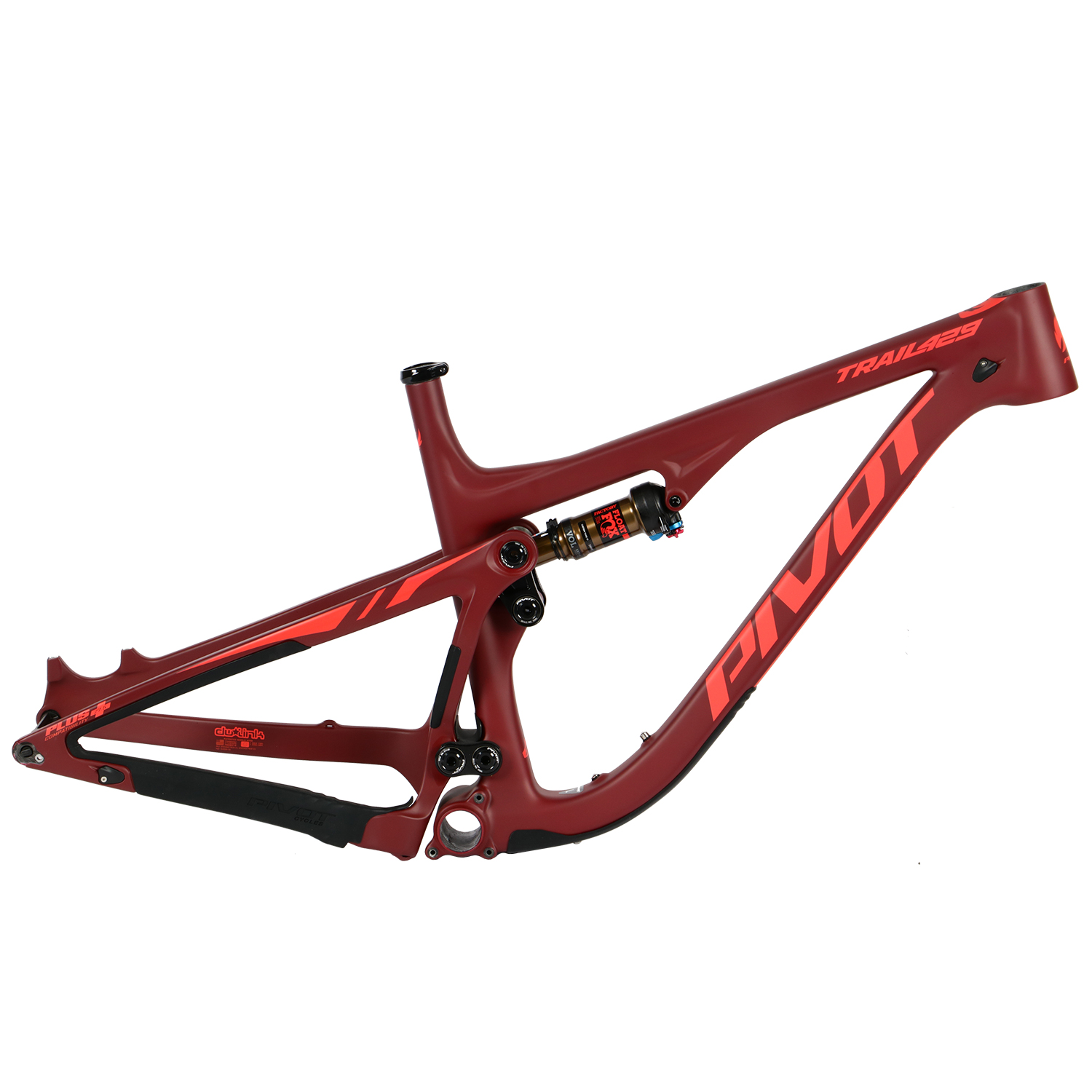

Pivot Trail 429 Carbon Trail Frameset
The best trail bikes are neither whippy nor overbuilt. They are, in a word, balanced. Pivot sweat the details—painstakingly developing the precise mix of resins, composite fibers, lay-orientation and frame shaping to create a chassis with the perfect blend of strength and stiffness.

The Trail 429 carbon features many of the same strength and stiffness-enhancing features that you’ll find on other Pivot gravity-oriented bikes, including a double-wishbone rear triangle, Super Boost Plus rear axle spacing, ultra-wide suspension linkages and burly bearing assemblies. With the Trail 429, Pivot upped the ante on downhill performance without any loss in versatility.

Features
  • Full carbon frame featuring leading-edge materials and Pivot’s proprietary, hollow core, internal molding technology
  • Designed for a 130mm - 140mm fork with an offset of 51mm
  • 120mm of smooth-yet-efficient dw-link® suspension, tuned for trail handling
  • Compatible with both 29 and 27.5+ wheel sizes
  • Class-leading mud and tyre clearance
  • Ultra-short 430mm chainstays make easy work of the tightest trails
  • Long-and-low geometry for a confident, stable stance
  • Metric-sized Fox Float DPS and DPx2 shock options

Specification
  • Frame Material: Carbon
  • Wheel Size: 29"
  • Grey Frame Rear Shock: Fox Float DPX2 (120mm Travel)
  • Red Frame Rear Shock: Fox Float DPS (120mm Travel)
  • BB Type: Press-fit BB92
  • Rear Axle: 12x157mm Super Boost
  • Headset: Zero Stack 44mm Top / Zero Stack 56mm Bottom
  • Cable Routing: Internal
  • Seatpost Diameter: 30.9mm
  • Dropper Routing: Internal
  • Max Rotor Size: 203mm

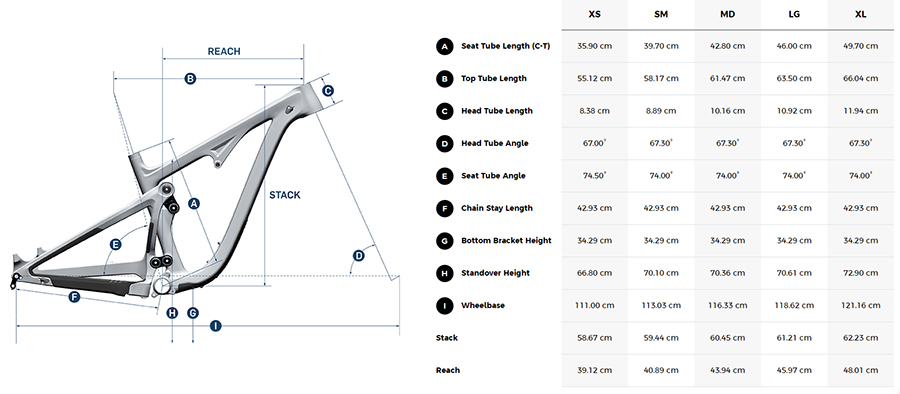

Geometry
