Wilier Cento 10 NDR QR Road Frameset
Full Screen
Exit Full ScreenPreviousNext
Wilier Cento 10 NDR QR Road FramesetWilier Cento 10 NDR QR Road FramesetWilier Cento 10 NDR QR Road FramesetWilier Cento 10 NDR QR Road Frameset
Multi-Buy Savings!
Code: E802XSR
Wilier Cento 10 NDR QR Road Frameset
A racing frame and the perfect balance between performance and comfort. The Cento 10 NDR will let you spend long hours in the saddle, thanks to its specially designed endurance geometry and the Actiflex system. Wilier’s new approach to absorbing rear vibrations generated by bumps in the road surface.

Actiflex
Actiflexis the heart of the Cento 10 NDR frame, providing an all-new connection between the seat post and seat stays. Using a carefully designed aluminium link and technopolymer dissipater, Wilier can give the rear wheel a millimeters of travel. The torsional stiffness of the aluminium link remains comparable to traditional monocoque carbon seatstays, despite the various connections involved. This stiffness gives the frame racing performance but at the same time allows the rear wheel to move up and down over bumps caused by imperfections in the road surface.

Dual Brake Mounts
The Cento 10 NDR is the first road bike whose frame and fork can be fitted with two different types of brakes: disc brakes with thru-axles and 160mm rotors or traditional direct-mount caliper brakes with quick releases. This solution expands the available configurations of the Cento 10 NDR, meaning the frame is always ready for an upgraded braking system. The fork and rear triangle have been designed to accommodate a wide range of tires: up to 28mm with the direct-mount setup or up to 30mm if using disc brakes.

Specification
  • Frame: HM Carbon Monocoque 60TON, Disc / Direct Mount Caliper
  • Fork: HM Carbon Monocoque 60TON, Disc / Direct Mount Caliper
  • Drop Outs: Quick Release
  • Seatpost: 27.2mm
  • Bottom Bracket: Press-Fit (Required)
  • Front Derailleur: Braze-On
  • Cable Routing: Internal
  • Headset: 1 1/8" - 1 1/4" (Included)

Supplied With
  • Cento 10 NDR Frame & Forks
  • Headset

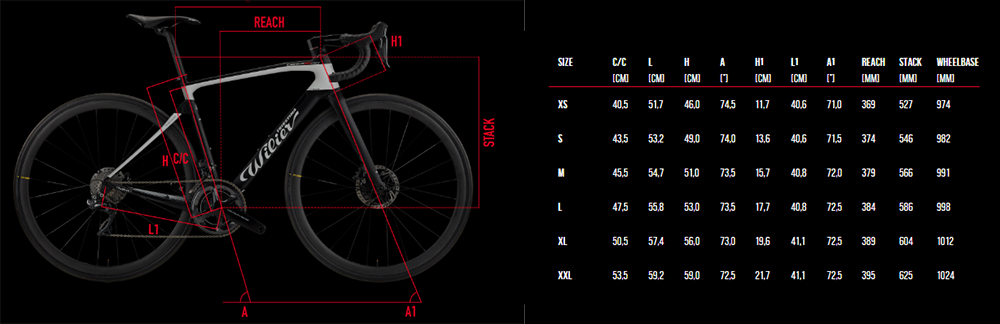

Geometry
