Code: K-FS-TPPLUS-KO-
Kinesis Tripster AT Plus Frameset

The new Tripster AT Plus. Like a Tripster AT but more. Much more. More clearance, more capability, more gravel. More everything.

We’ve taken our favourite Tripster AT and jacked it to the hilt. Who needs 650B? With tyre clearance of up to 29 x 2.2” tyres (700 x 56mm) you can have a larger tyre without the rolling ability compromise of a smaller diameter wheel. A narrower tyre should be used in muddier conditions.

The Tripster AT Plus has a more sloping top tube than our other gravel bikes, giving the rider more manoeuvrability around the bike when the going gets rough. It also has a lower bottom bracket to lower the centre of gravity when fitted with larger tyres.

For even extra manoeuvrability, the Tripster AT has internal routing for a dropper post. Not ridden a dropper post on a gravel bike before? When you ride it for the first time, you'll wonder why you didn't make the switch years ago.

We have an all-new Kinesis All Terrain carbon fork for the AT Plus with extended clearance for bigger tyres. This fork also comes with internal dynamo and brake hose routing, and cargo mounts – rack it up, and ride on out.

The Tripster AT is one-by compatible only and will work with both electronic and mechanical groupsets – pick your poison.

The Tripster AT Plus has triple bottle mounts, top tube mounts and fork cargo mounts for maximum bike-packing capability. And that's what the all-new Tripster AT Plus is ALL about – maximum capability.



Features
  • Tough, lightweight 6069 aluminium series tubeset with a tapered machined headtube
  • Big tyre capability with clearance for 29 x 2.2” (700c x 56mm) - A narrower tyre should be used in muddier conditions.
  • All-new geometry for more off-road capability
  • Dropper post routing
  • New Kinesis All Terrain fork with internal dynamo and brake routing
  • 3 x bottle boss mounts, top tube mount and fork cargo mounts
  • 31.8mm seat tube for 27.2mm seat post (will add a bit of compliancy)
  • Inboard Shimano Flat-mount disc mounts on frame and fork (maximum 160mm rotors)
  • Seat stay mounts for mudguards and a pannier rack
  • Optimum hydration system – multi-position down-tube bottle cage mounting to allow for full bottle carry capacity even with a frame bag
  • GW Switch Lever Thru-axles included
  • Electronic / Mechanical / 1x Compatible
  • BSA threaded BB for real-world low-maintenance riding
  • 22mm long flat-mount disc brake bolts are required for the frame
  • Sizing & Approx. Weights: (Centre/Top) 48cm = 1.69kg | 50cm = 1.72kg | 52cm = 1.75kg | 54cm = 1.79kg | 56cm = 1.83kg | 58cm = 1.87kg | 60cm = 1.91kg
  • Fork Approx. Weight: Kinesis All Terrain fork 540g
  • Frameset Includes: Kinesis carbon fork, Kinesis headset with ACB bearings, seat clamp, front and rear axles and cable port hardware

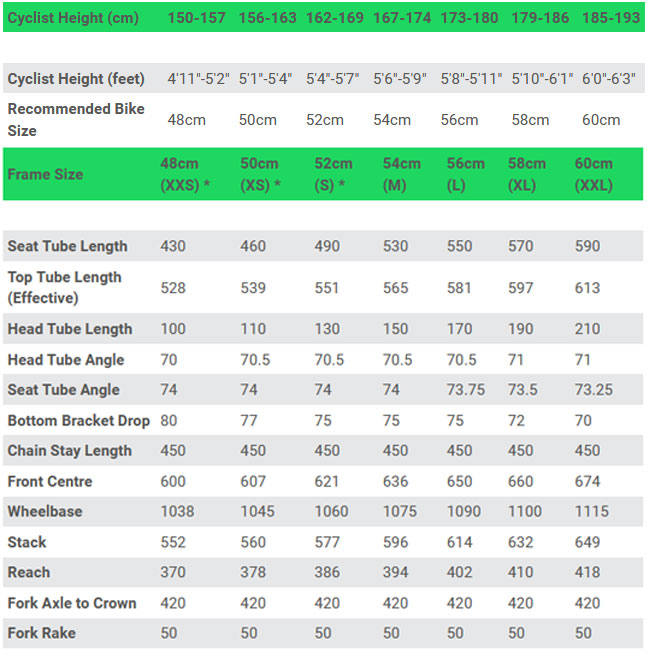

Geometry
