Tune ClimbHill Boost XDR Rear Hub
RRP
Code: 1394

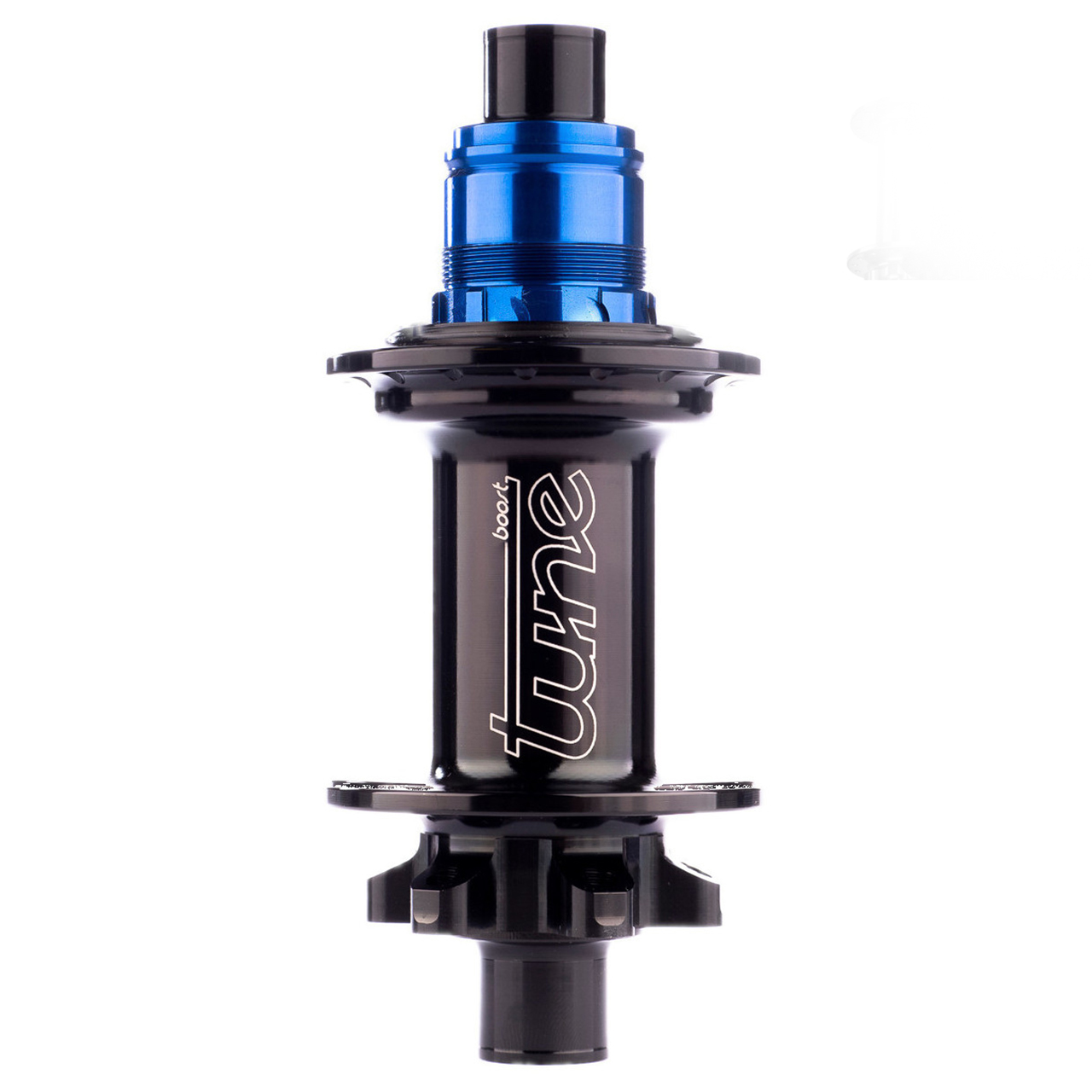

Tune ClimbHill Boost XDR Rear Hub
Tune's bestseller disc-brake MTB hub for 6-hole brake disc mount in Boost standard! Assembled and adjusted by hand in Buggingen, Germany. The hub is CNC machined in there factory from aerospace grade Aluminium with an increased fatigue strength. The anodizing ensures a great look and prevents corrosion even under the toughest circumstances.
Features
- Spoke Holes: 28
- Rotor Mount: 6 Bolt
- Axle Size: Boost 148x12
- Bearings: Standard Sealed
- Freehub: Sram XDR (Sram Road)
Specification
- Flange distance left: 37.4mm
- Flange distance right: 23.6mm
- Pitch circle left: 55.5mm
- Pitch circle right: 55.5mm
- Diameter spoke holes 2.4mm
- Offset spoke hole left flange
- Offset spoke hole right flange
- Spoke lacing pattern: 28 spokes with 3-cross lacing
Notes
- Threadlock residue must be removed before installation. The brake rotor must be fastened with a calibrated torque wrench to a max torque of 5Nm.
