Amflow TL Carbon E-Bike
RRP
Code: 69798718104
Amflow TL Carbon E-Bike
Due November 2026
Fully Loaded for Adventure. An SUV e-bike built for multiple scenarios, Amflow TL Carbon brings agility on trails, smoothness in the city, and stability to loaded touring.
Full Suspension for All-Terrain Riding
A 6.4lb full-carbon frame keeps the bike exceptionally agile and durable, bringing the complete bike weight down to just 49.8lb.
Full Suspension Co-Developed With FOX
With 120mm of front travel and 105mm of rear travel, the full suspension system absorbs bumps in the city, stabilizes cargo on loaded rides, and stays supple over roots and rocks while holding strong on bigger hits.
Both front and rear wheels can be switched from 27.5-inch to 29-inch to match different terrain needs. FOX AWL and FLOAT suspension are optimized for the Amflow TL platform, delivering confident handling, comfort, and control across a wide range of terrain.
Ergonomic Design for Long-Ride Comfort
Outstanding geometry and anti-squat performance make every stroke count, keeping you efficient on long rides and in control on descents.
Supports a 440lb Total Weight for Loaded Touring
The total weight includes the bike, front and rear rack loads (max 44lb front, 59lb rear), and a rider weight of up to 275lb. With its modular mounting design and MIK HD-compatible rear rack, the bike supports panniers, a bike trailer, and other accessories.
Avinox M2 Drive Unit
The drive unit is as light as 2.65kg, maintaining its lightweight advantage while achieving steady performance improvements. Offering 125Nm max torque over 5 assit modes.
Smarter Control for Better Rides
The Avinox Ride app supports importing third-party routes (GPX/FIT/TCX format) and sending them to the Control Display. During rides, the display shows the route in real time with turn guidance and off-course alerts. Saved routes can be accessed anytime for repeated navigation.
Apple® Find My Tracking
Pair Amflow TL Carbon with Apple® Find My to check the bike’s location and battery status, or activate its sound alert.
Range for New Horizons
Both 800Wh and 600Wh batteries can be paired with the 480Wh secondary battery, offering up to 1280Wh of total capacity.
Flexible Swapping, Versatile Configurations
Easy to carry and swap with one hand, both 800Wh and 600Wh removable batteries are built for long-distance, high-intensity rides. You can also add the 480Wh secondary battery to expand total capacity up to 1280Wh.
Safe Sequential Four-Battery Charging
Pair with the new charging hub for safe, sequential multi-battery charging. Connect it to either the fast charger or the standard charger, and it can safely charge up to four batteries in sequence—without constant unplugging and swapping. You can also set a charge limit, which automatically cuts the power once charging is complete.
Avinox × SmoothShift Electronic Shifting
The Drive Unit detects gear-shift signals and drives the cassette to enable smooth shifting, without needing you to pedal. It intelligently reduces torque to minimize shock and protect the chain. Shift parameters can be adjusted directly on the Control Display. When paired with an Avinox-specific chain, the system stays smooth and controlled under high torque.
Amflow Accessory Ecosystem
Equip your bike with purpose-made front and rear racks, mudguards, handlebars, a stem, wheels, hubs, a dropper post, pedals, brakes, a thru-axle for bike trailer, a kickstand, a saddle, and grips to match a wide range of riding scenarios.
Frameset:
- Frame: Amflow TL Carbon Frame With Front and Rear Mudguards mounts (Compatible with 27.5" and 29" rear wheels)
- Fork: Fox AWL HD Sport - 120mm
- Rear Shock: Fox Float Rhythm - 105mm
Wheels:
- Wheel: Amflow HTA-25 Mullet - 27.5"
- Front Tyre: Maxxis Crossmark II - 27.5x2.35"
- Rear Tyre: Maxxis Crossmark II - 27.5x2.35"
Drivetrain:
- Gear Levers: TRP CMD Shift Switch - 10 Speed
- Rear Derailleur: TRP E.A.S.I.
- Chainset: Avinox SL Crank - 38T (M/L: 155mm; XL/XXL: 160mm)
- Cassette: Tektro M5243 - 11/43T
- Chain: Avinox eGlide T Chain - 10 Speed
Components:
- Saddle: Amflow Touring
- Seatpost: Amflow Dropper (S/M Frame: 150mm, L/XL Frame: 170mm)
- Handlebars: Amflow Touring - 720mm (S/M) 740 (L/XL) - 93mm Rise
- Stem: Amflow Touring - 35mm
- Grips: Amflow Enduro 2
- Brakeset: Tektro TKD173 With Tektro Sensor Rotor 203mm
Motor & Battery
- Motor: Avinox M2 Drive Unit: Normal 110Nm, Peak 125Nm
- Battery: Avinox Integrated Removeable Battery: 800Wh
- Display: Avinox Screen: 2-inch OLED Control Display
- Switch: Avinox Wireless Controllers: Right and left sides
- Charger: Avinox Charger: 4A/168W
Accessories
- Avinox Front Light
- Amflow Touring Rear Rack, Compatible With MIK HD Standard
- Amflow Elite MTB Pedals
- Amflow Bottle Cage
- Front Mudguard, Rear Mudguard
- Amflow Touring Kickstand (348mm)

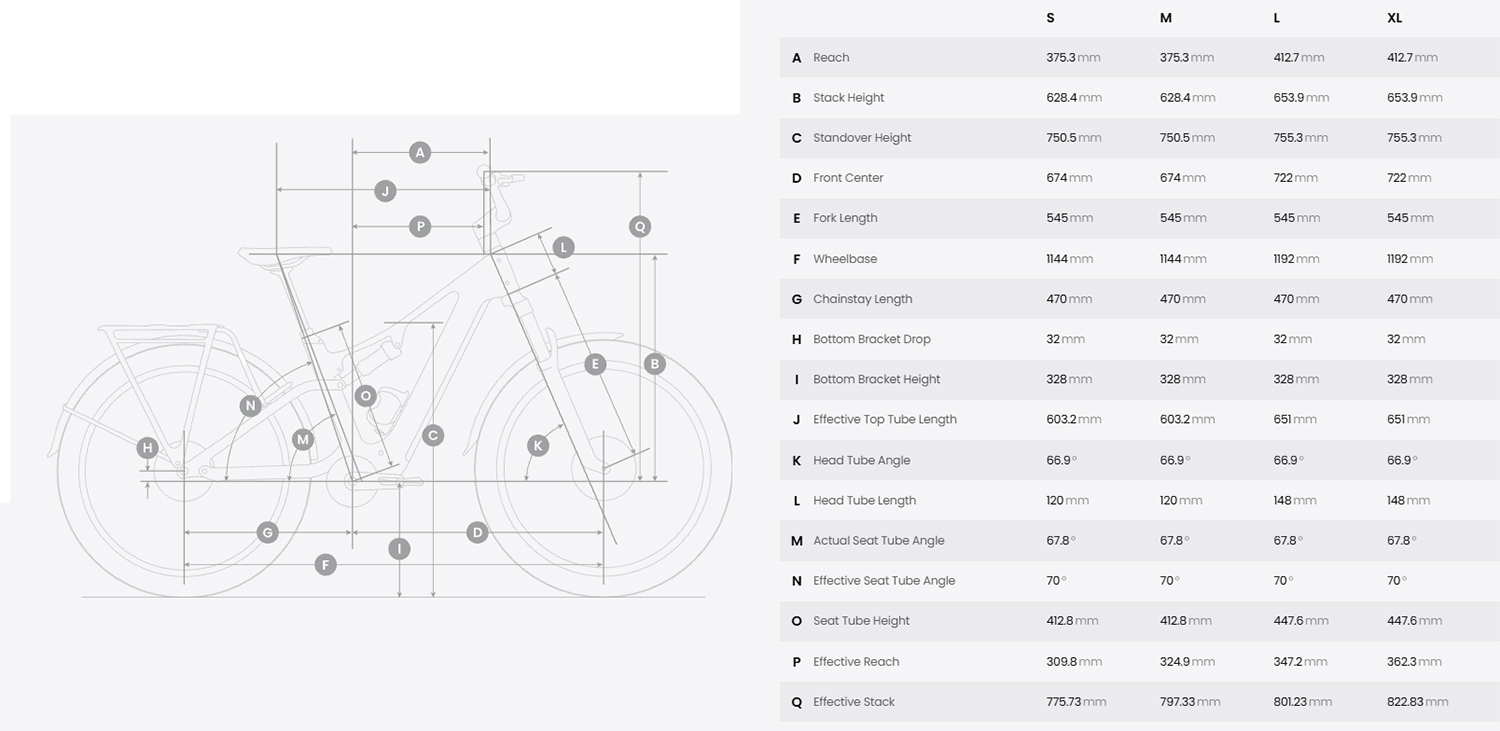

Geometry
Please Note: The current build time for bikes can be found at the checkout.
