Code: PR-M30-86

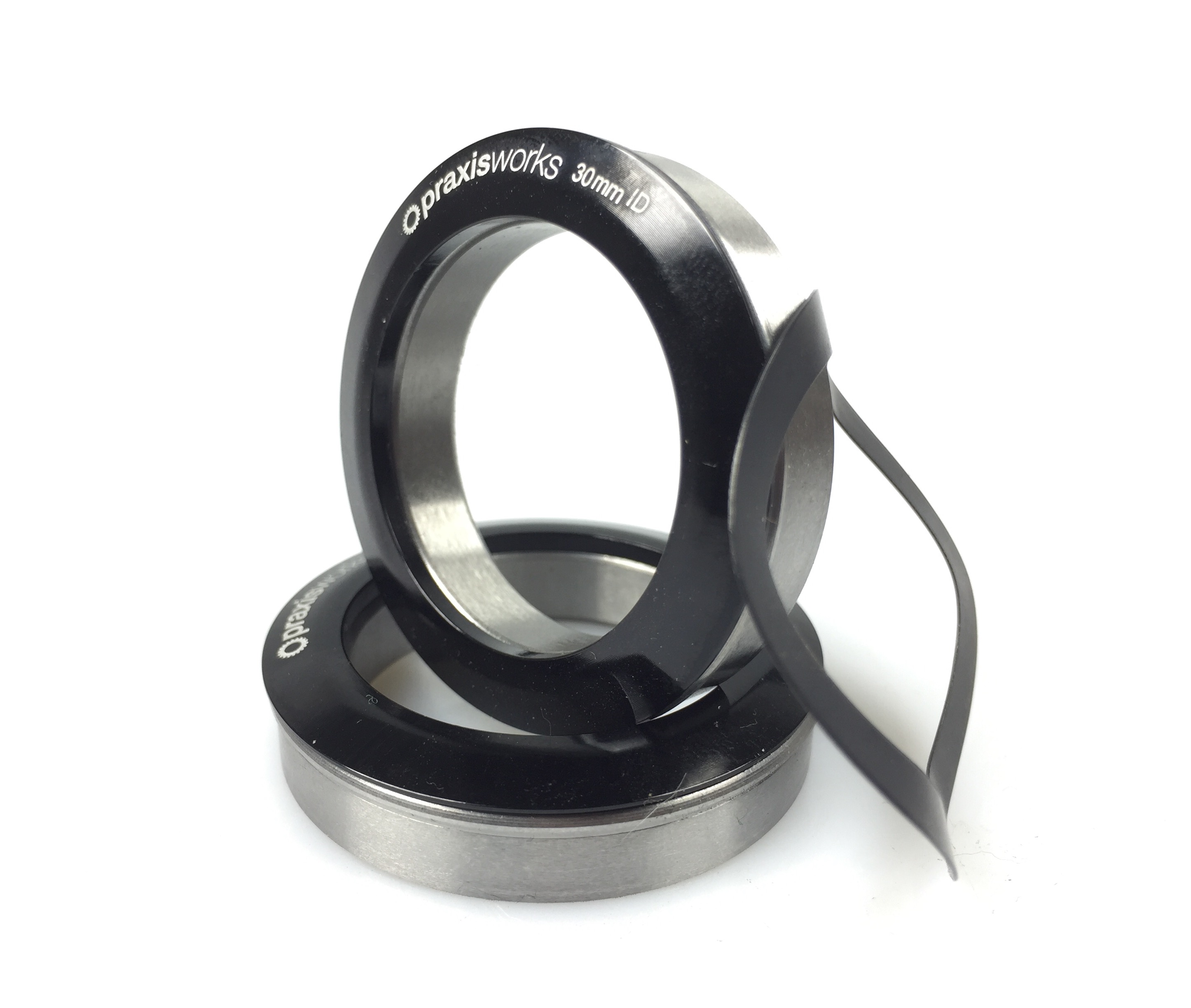

Praxis M30 BB86 Road / BB90/92 MTB Bottom Bracket
Praxis M30 BB for installing a Praxis M30 crank into a BB86 Road frames, a BB90 MTB frame or BB92 MTB frame.
Specification
- For Praxis M30 spindle based cranks only. NOT for other 30mm cranks
- Used only for frames that are BB86 ROAD | BB90 MTB | BB92 MTB
- Unique design in which the bearing outer race is also the outer press fit surface
- Chromium steel design of race and balls.
- Steel Bearings | 30mm Drive bearing /28mm NonDrive bearing
- Before installing, you must use Praxis frame Gauge to check your frame.
- BB86 Road/BMX = 86.5mm width X 41mm diameter
- BB90 MTB = 89.5mm width X 41mm diameter (*NOT Trek Road BB90)
- BB92 MTB = 92mm width X 41mm diameter
DavidThe Zayante Carbon Crank, was standard on my Giant Revolt Gravel Bike. With the 30mm drive side, and 28mm non drive you are limited to alternative bottom brackets with 41OD, shells. This is my 3rd purchase, and for reference i am still running the same chain. Praxis need to up their game. Next will be change crankset to GRX, and elimiate this configuaration. Bearing seals are not fit for off road purpose. On a plus note, Merlin are a fantastic online supplier.
Mr silvesterThis is quite the rear beast to find and you had it in stock not once but twice. Repaired the customers bike , pressed into the bottom bracket a treat. Thank you
