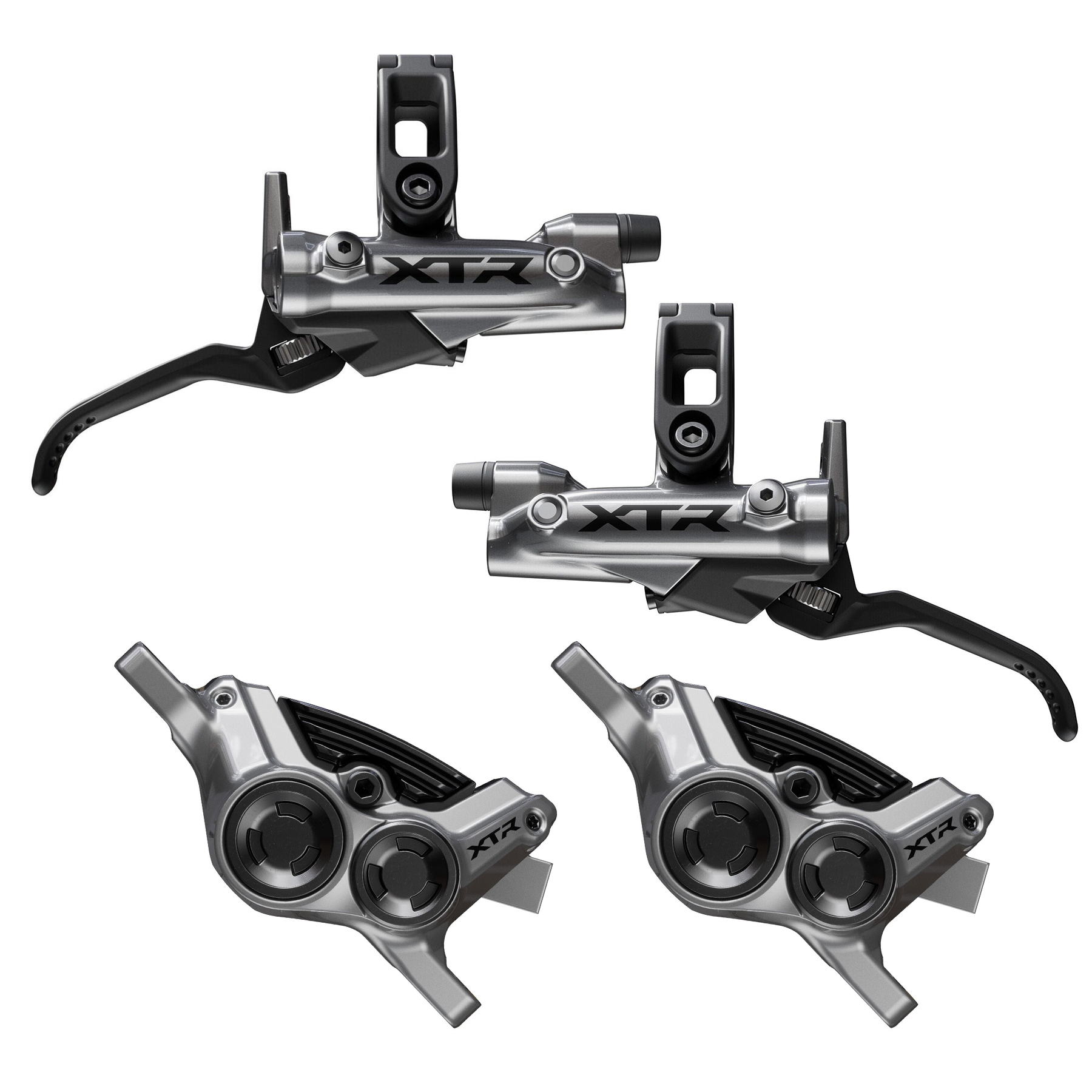

Shimano XTR M9220 Disc Brake Set

• Ergonomic, powerful and compact Servo-Wave XTR Enduro/Trail hydraulic disc brake lever is performance optimized with full adjustability on the fly
• Short stroke Servo-Wave mechanism with SIL-TEC coated roller for a quick, smooth pad engagement and more power for aggressive riding
• Excellent clearance at the calliper has enabled Shimano to use a short stroke Servo-Wave mechanism. As the brake lever is pulled a cam linkage enables rapid pad to rotor engagement, at the point of contact the cam moves across multiplying the leverage ratio and increasing the stopping power
• Adjustable free stroke enables you to fine tune the amount of lever pull before pad and rotor engagement
• Second braced bar contact point for increased master cylinder and lever rigidity
• Easy access no tools lever reach adjustment dial for custom lever feel and position
• Lightweight, strong and durable forged alloy one piece body is also rigid under hard braking loads
• Forged alloy short 14 mm wide up-swept brake lever with textured finish for optimum strength, grip and ergonomics
• Evolved ergonomic lever design for trail/enduro with a closer pivot and natural finger motion provides efficient and powerful braking
• Hose direction parallel to the bars designed to look perfect with internal or external routing
• With easy bleed port
• Only for use with Low Viscosity Oil. For consistent viscosity over a wide temperature range ensuring stable piston movement within the brake system and always provides the necessary braking force with a constant lever stroke
• Hinged clamp for quick installation
• I-spec-EV compatible
• Shimano XTR cutting edge braking technology, lightweight and powerful easily adaptable post-style 4 pot hydraulic disc brake calliper
• Dual diameter 4 pistons design optimized for high power and control
• Opposed 4-piston design reduces leading effect and optimal pad wear increases braking control
• Super lightweight forged one piece design that increases rigidity and reduces weight
• Anti-rattle pad structure, wider back plate of pad with narrower, ovalized hole for pad pin
• Can be used with a choice of adapters and rotors giving you the freedom to customise and suit your bike
• Recommended for use with Ice Tech Center Lock rotors for optimum braking performance in a choice of 160 mm, 180 mm and 203 mm

Brakeset Includes:

• Front:  BR-M9220/BL-M9220 - 850mm
• Rear:  BR-M9220/BL-M9220 - 2000m
