Sorry, this product is no longer available!
Simplon Rapcon Pmax GX1 Yari Carbon Full Suspension E-Bike - 2022 is no longer available at Merlin Cycles. However you may find an alternative or updated product below.

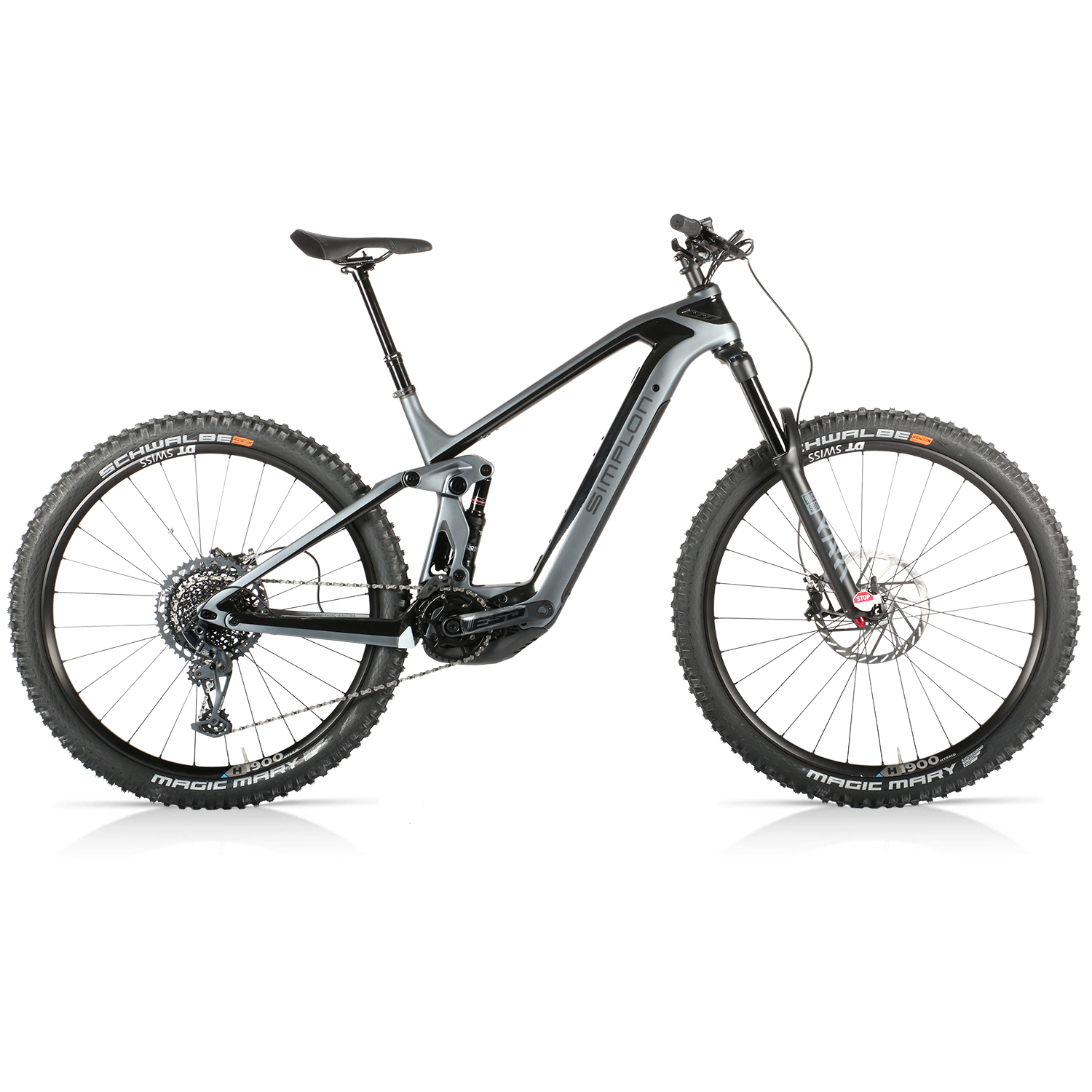

Simplon Rapcon Pmax GX1 Yari Carbon Full Suspension E-Bike - 2022
Full Screen
Exit Full ScreenPreviousNext
Simplon Rapcon Pmax GX1 Yari Carbon Full Suspension E-Bike - 2022Simplon Rapcon Pmax GX1 Yari Carbon Full Suspension E-Bike - 2022Simplon Rapcon Pmax GX1 Yari Carbon Full Suspension E-Bike - 2022Simplon Rapcon Pmax GX1 Yari Carbon Full Suspension E-Bike - 2022Simplon Rapcon Pmax GX1 Yari Carbon Full Suspension E-Bike - 2022

This item was discontinued 13th March 2024.

If you require help finding an alternative to this product please contact customer services.

Code:: 4674
Simplon Rapcon Pmax GX1 Yari Carbon Full Suspension E-Bike - 2022
The Rapcon Pmax is a lightweight and incredibly versatile trail fully that merits an entirely new definition of the term E-MTB. With 625Wh Bosch PowerTube battery, you’ll be conquering summits one after another.

Fitted with the latest Bosch CX Performance Line drive unit offering 85Nm, RockShox suspension and Shimano XT M8100 transmition the Rapcon Pmax is fully capable to tackle trail after trail. The 29er increases grip and rolling speed and a comfortable aggressive geometry makes this E-MTB playfully like no other bike.

Features
  • The beautifully designed carbon frame ensures low weight at optimum stiffness.
  • The Performance Line CX drive unit by Bosch is a true powerhouse among drive units. Even on challenging terrain it gives you even more riding fun with a torque of up to 85Nm at a weight of 2.9 kg and a particularly compact frame size.
  • The E-MTB also has extensive frame protection: stainless steel protectors on the rear bearing points, the unscrewable cable routing on the left seat stay and the battery cover made of cushioning rubber on the bottom of the down tube.
  • The ventilation slots in the steering head let cool air enter on downhill passages and warm air exit on uphill climbs. This prevents the battery from overheating. Additionally, the cables can alternatively be routed through the ventilation slots.
  • Dual-battery option with integrated 625-Wh battery and external 500-Wh battery in and on the down tube. With 1125 Wh, you’re guaranteed nearly inexhaustible support even on long tours. Convenient: In case you don’t need the second battery, you can install a bottle cage via the mount instead (SOLD SEPARATELY)

Frameset:
  • Frame: Rapcon, Carbon
  • Fork: RockShox Yari - 150mm
  • Rear Shock: RockShox Super Deluxe Select+ - 150mm

Wheels:
  • Wheels: DT Swiss H1900 Hybrid - 29"
  • Tyres: Schwalbe Addix Magic Mary SuperGravity TLE - 29 x 2.6"

Drivetrain:
  • Gear Levers: Sram GX1 Eagle - 12 Speed
  • Rear Derailleur: Sram GX1 Eagle
  • Chainset: FSA CK745 - 34T
  • Cassette: Sram PG1275 - 10/52T
  • Chain: Sram - 12 Speed
  • Pedals: Not included

Components:
  • Saddle: Selle Italia X-Land
  • Seatpost: KS Rage Dropper - 150mm Drop
  • Handlebars: Simplon Carbon Riser - 760mm
  • Stem: Simplon - 50mm
  • Brakes: Sram G2 RSC With Sram HS2 220mm/200mm Rotors

Motor & Battery
  • Motor: Bosch Performance Line CX - 85Nm - 25km/h
  • Battery: Bosch Power Tube 625Wh
  • Control: Bosch Purion
  • Display: Bosch Purion
  • Charger: Bosch

Geometry

Please Note: The current build time for bikes can be found at the checkout.
