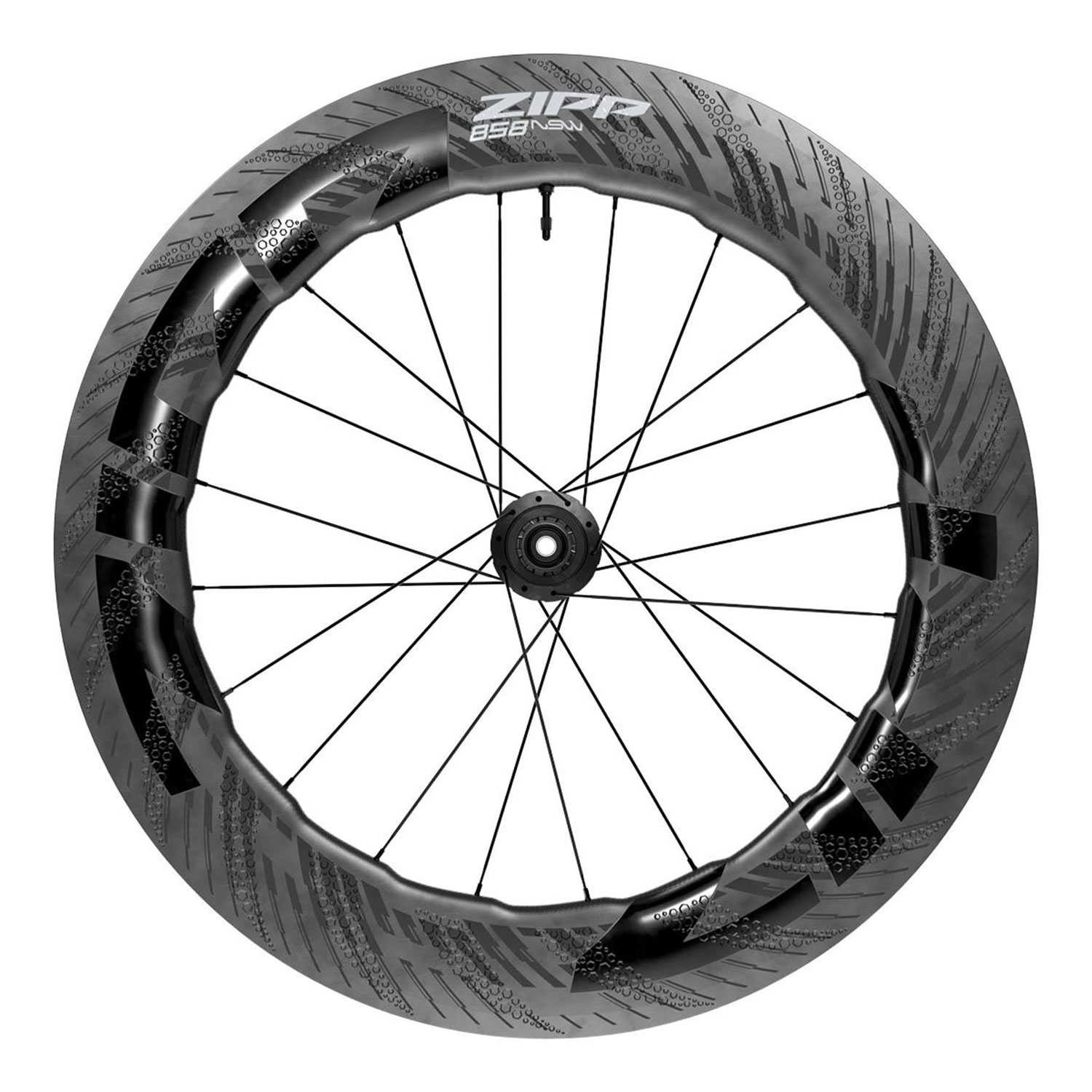

Zipp 858 NSW Carbon Tubeless Disc Front Tubeless Wheel - 700c
Full Screen
Exit Full ScreenPreviousNext
Zipp 858 NSW Carbon Tubeless Disc Front Tubeless Wheel - 700cZipp 858 NSW Carbon Tubeless Disc Front Tubeless Wheel - 700c

Zipp 858 NSW Carbon Tubeless Disc Front Tubeless Wheel - 700c

RRP
Code: ZPWH8772
Zipp 858 NSW Carbon Tubeless Disc Front Tubeless Wheel - 700c

Zipp’s ultimate aero weapon is faster than ever, thanks to the proprietary Total System Efficiency technology. With TSE, the 858 NSW Carbon Tubeless Disc-brake wheelset features a tubeless and hookless rim profile for seamless tyre interface and huge drop in weight. The 858 gives you the benefits of our deep rims at weight typically associated with rims that are 20mm shallower. The wheel’s internal width is 23mm, ideal for running wider tyres with lower pressures for decreased rolling resistance. That’s how TSE technology helps you conquer the four barriers to speed: Wind Resistance, Gravity, Rolling Resistance, and Vibration Losses.


The 858 NSW’s undulating 82mm-85mm deep rim shape, the patented Sawtooth profile, is Zipp's highest performing design for aero efficiency and crosswind stability. The result is the pure speed, especially for triathletes, time trial specialist, and any other speed freak. What’s more, while this wheelset is optimized for tubeless tyres, you still have the option to run tubeless ready tyres with tubes.


The 858 NSW is fastest with a 28mm tyre. In triathlon, running wider tubeless tyres at lower pressure makes you faster while also smoothing out the ride so your body is fresher for the run. Disc brakes also offer more reliable speed modulation and braking power in all weather conditions. The 858 NSW features the premium ZR1 SL hubset with ceramic bearings and 66 points of engagement.


Specifications

  • Size (wheels): 700c
  • Rim construction: Carbon – Hookless
  • Tyre compatibility: Tubeless tyres only
  • Rim depth: 85mm
  • Brake compatibility: Disc (Centre Lock)
  • Rim - inside width: 23mm
  • Rim profile: Symmetrical
  • Rim finish: UD fibre, Impress technology
  • Nipple material: Aluminium
  • Spoke type: CX-Ray - Black
  • Spoke count: 20
  • Spoke pattern: 2 Cross, Radial drive, 2 Cross non-drive
  • Driver body type: SRAM XDR, SRAM/Shimano Road
  • Axle type (wheels): TA 12x100, TA 12x142
  • Bearings: Cartridge - Ceramic
  • Driver mechanism: 6 Pawls Compression, 66 POE
  • Max tyre pressure: 73psi / 5.0bar
  • Max recommended system weight: 250lbs / 114kg
  • Spoke length DS: 220mm, 230mm
  • Spoke length NDS: 232mm
  • Max outside width: 27mm
