Code: K-FS-FF29-

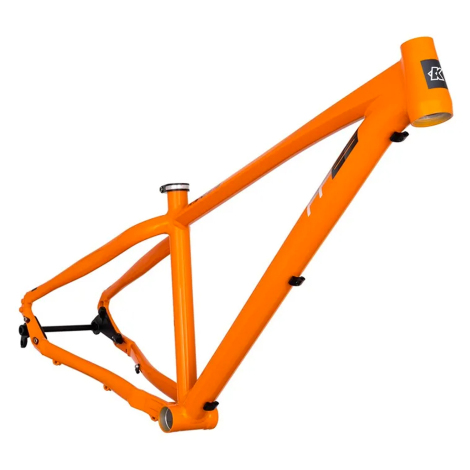

Kinesis FF29 MTB Frame

The all day, flippin’ fast, hard charging hardtail. Your new favourite hardtail…

In 2012 Kinesis launched the FF29 and it went on to win multiple magazine reviews and awards. For 2023 the FF29 is re-born – longer, lower, meaner – but still flippin’ fast. Geometry has been bought bang up to date, the custom frame build utilises all-new tubing technology and it comes brimming with features designed for UK trails.

Kinesis developed a mountain bike frame tuned to the needs that we want as riders, giving the ride quality we enjoy while combining stiffness and durability at the lowest possible weight. They have also designed the FF29 with adjustable dropouts so that riders can optimise the rear stay length for their style of riding. This also gives the opportunity to set the frame up as a single speed.

The FF29 is long, low and stable with a steep seat tube and long reach numbers – the frame is actually sized by reach, and is designed for use with a dropper post.

It's slack but this bike is no slacker - with a head angle of 65.5º, you get a nimble, agile feel at the bars for singletrack hacking.  An all-day hard-charging fully-capable 29” hardtail bike based around a 140mm fork. Great for climbing and seriously fast for the descents – just how a hardtail should be. How will you build yours?



  • The FF29 uses Kinesis’s advanced SPF - Super Plastic Forming. Most manufacturers use Hydroformed tubes, but with SPF we can create lighter tubes and more intricate shapes that will build into a lighter and stiffer frameset.
  • The FF29 is long, low and stable with a steep seat tube & long reach numbers. Despite this it’s not ‘slack’ or slow handling thanks to a head angle of 65.5º providing a nimble/agile feel at the bars for singletrack hacking!
  • Horizontally adjustable dropouts allow you to fine tune the FF29’s chainstay length for how you ride, with the added benefit of single speed capability.
  • Size by Reach - Choose a size based on your riding style and fit preference rather than your height.
  • Externally routed cables makes servicing easy and allows the use of full length outer cable to ensure your FF29 will run through a UK Winter.
  • GW Switch Lever Thru Axles: Clean and simple design with a removable lever.



  • SPF 6061 aluminium tubing.
  • Clearance for 29 x 2.5” tyres.
  • 148 x 12mm Boost rear axle spacing.
  • BB92 BB shell.
  • 31.6mm seat post required.
  • Headset required: Tapered integrated.
  • GW ‘Switch Lever’ rear axle.
  • Sizes: L1, L2, L3, L4.
  • Weight: 2.0kg (L3 frame).
  • Frame is supplied with dropouts, rear axle, seat clamp and cable guides.
