Ridley Grifn A GRX Gravel Bike
RRP
Code: 1784004
New Product
With the Grifn A, Ridley expand there all-road segment to aluminum bikes. This bike is very similar to the carbon variant. With the Grifn A, we underline our ambition to offer a custom bike at every price point.
You can easily switch from a 'road-setup' to an 'offroad-setup' with the Grifn A. This aluminum bike feels at home on both regular roads and gravel paths thanks to its well-thought-out and highly appreciated all-road geometry. With internal dynamo routing and the option to install fenders, the Grifn A also becomes the ideal bike for necessary commutes.
You can choose tyres up to 38 millimeters or even 40 millimeters (with 1x drivetrain) with the Grifn A, and in terms of geometry and placement of eyelets, this Grifn A is identical to the successful Grifn. Additionally, we opt for a 6061-T6 aluminum alloy because it scores very well on stiffness, metal fatigue, weight, and welding precision. The Grifn A even has a UDH, very rare among similar bikes. This makes the Grifn A a modern aluminum bike accessible to all enthusiasts.
All-road Geometry
The geometry of the Ridley Grifn is the superb overlap of a stiff racing- and a tolerant off-road frame! The goal is a reactive and nimble riding feel while keeping a stable handling on off-road terrain. The head tube angle of the Grifn is slightly flatter than the head tube angle of a road bike. Compared to a gravel bike, the head tube angle is sharper. This results in a completely new geometry, specifically designed for the all-road segment. The riders of Classified Ridley were also consulted and gave positive feedback on this all-roader.
Optimized Tyre Clearance
With the Grifn A, you have the option for tires up to 38 millimeters, and if you opt for a 1x drivetrain, you can even go up to 40 millimeters. With 38 millimeters, you typically have enough options to handle various gravel challenges. This maintains a balance between speed and agility on one hand, and comfort and stability on the other. Of course, on the road, you can easily switch wheels or tires if needed.
Personalized Setup
The frame has three attachment points on the down tube and two beneath it, as well as three on the seat tube, allowing you to adjust the position of your bottle cages in combination with a frame bag. Additionally, there are two attachment points on the top tube for a top tube bag or toolkit. Furthermore, we have designed specific mudguards for the Grifn, enabling you to use your bike in all weather conditions.
Universal Derailleur Hanger (UDH)
The universal derailleur hanger (UDH) is the new standard in the cycling world. Not only is this derailleur hanger compatible with all modern shifting groups, it also protects against derailleur breakage and chain drops. In mountain biking, UDH has long been very common, and Ridley is bringing the technology to other segments as well.
Two Worlds, One Bike
With the Grifn family, you can hit the road as well as the off-road. You simply change wheelsets and do a gran fondo gravel on Saturday and hit the road the day after with the regular cycling club. With this family, you no longer need any other bikes.
Frameset
- Frame: Grifn A, Aluminium, TA
- Fork: 4ZA Allroad, TA
Wheels
- Wheels: Shimano RS171 - 700c
- Tyres: Vittoria Terreno Dry - 700 x 38c
Drivetrain
- Gear/Brake Levers: Shimano GRX 400 - 2x10 Speed
- Front Derailleur: Shimano GRX 400
- Rear Derailleur: Shimano GRX 400
- Chainset: Shimano GRX 400 - 42T
- Cassette: Shimano - 11/36T
- Chain: Shimano - 10 Speed
- Pedals: Not included
Components
- Saddle: Selle Italia
- Seatpost: Forza
- Handlebars: Forza Cirrus Flared
- Stem: Forza Cirrus
- Brake Calipers: Shimano GRX 400

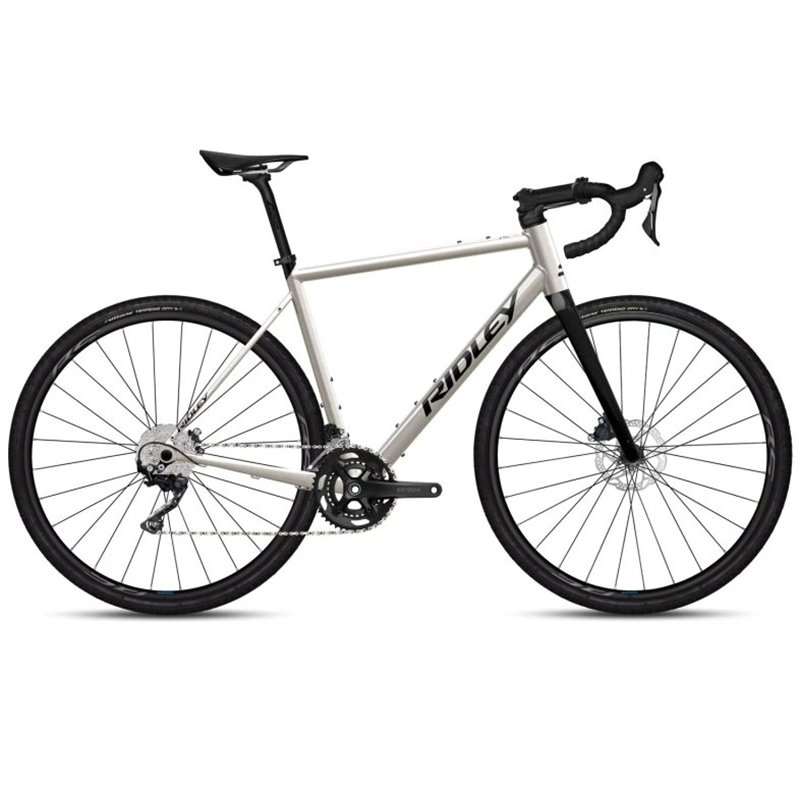

Please Note: Image is for illustration purposes only, the full spec of the bike is above.

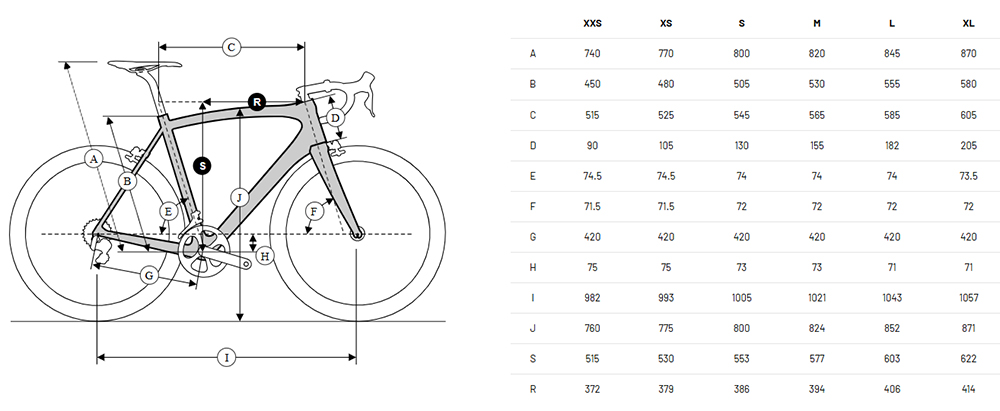

Geometry Information
Please Note: The current build time for bikes can be found at the checkout.
