Token Ninja TBT Bottom Bracket PF30 For 24mm Axle
Code: TK-BB841

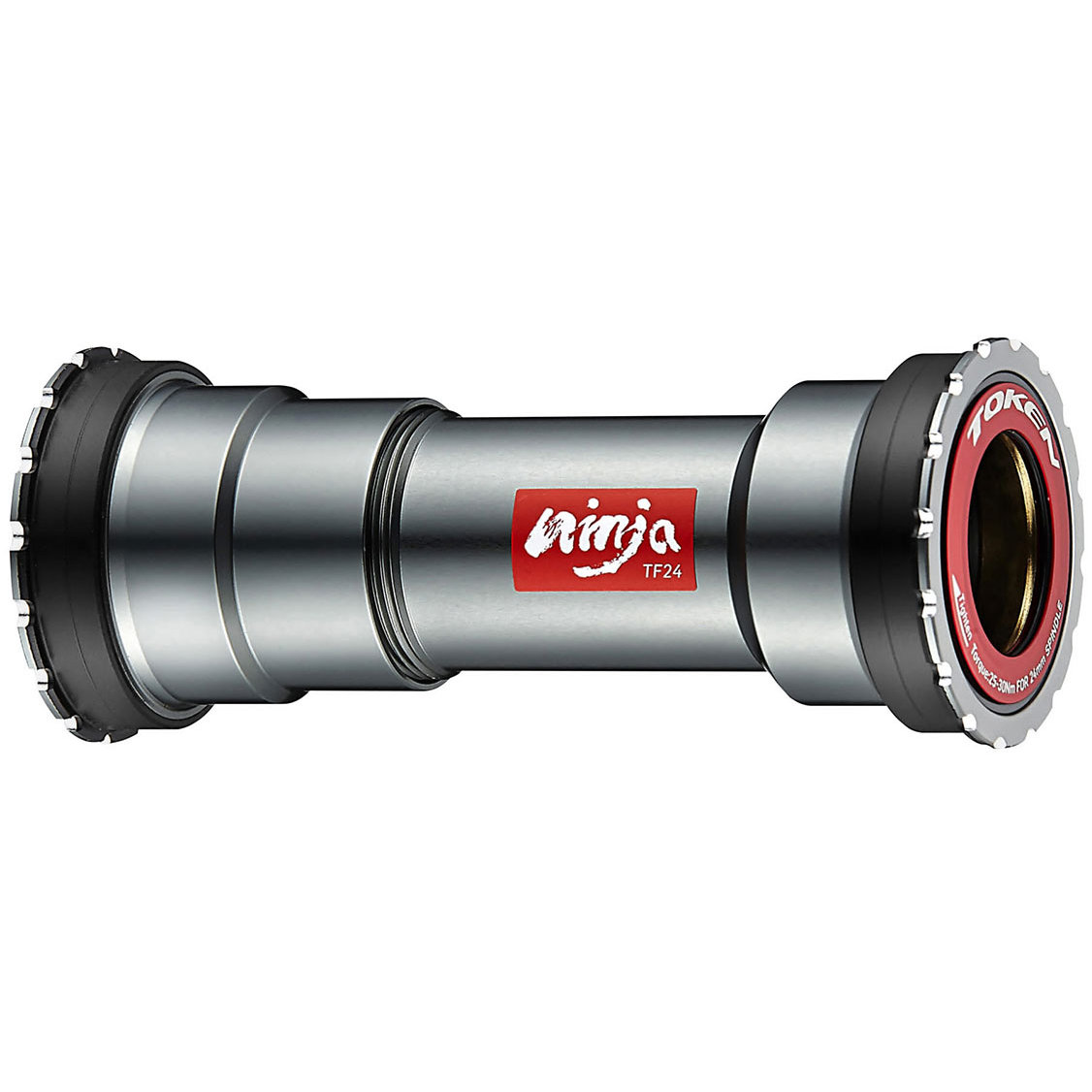

Token Ninja TBT Bottom Bracket PF30 For 24mm Axle

Token's Ninja bottom bracket solves the creaking issues of pressfit brackets, improving bearing life and adding stiffness to the bottom bracket. It incorporates Fusion technology; it is a combination of plastic and fibre that covers an alloy bottom bracket shell. The composite material allows it to be precisely machined and fit snugly into the frame so it doesn't move in the frame. The bearings themselves are housed in the alloy shell and wrapped with the plastic and fibre. This fusion of the three materials provides the bearings a solid platform to sit on and extends their lives. The two sides have been extended to meet in the middle with a threaded interface, so the right and left sides lock together. This locks the frame, cranks and bottom bracket together and improves stiffness. Including specially made tools that precisely fit the bottom bracket and keep your frame safe from damage during installation. TBT bearings feature ceramic balls and extremely hard races for very low rolling resistance and long-lasting performance.


  • Weight: 135g
  • Designed for BB shells with a 46mm ID (Inner Diameter) measurement
