Sorry, this product is no longer available!
Pivot Mach 6 Carbon Enduro Frameset is no longer available at Merlin Cycles. However you may find an alternative or updated product below.
Pivot Mach 6 Carbon Enduro Frameset is no longer available at Merlin Cycles. However you may find an alternative or updated product below.
Pivot Mach 6 Carbon Enduro Frameset
This item was discontinued 9th November 2023.
If you require help finding an alternative to this product please contact customer services.
Code:: P-FS-18M6CV3
Pivot Mach 6 Carbon Enduro Frameset
Pivot's renowned Mach 6 Carbon is longer, lower and sets a new benchmark for enduro andaggressive trail bikes. The Mach 6's peerless pedaling efficiency and downhill handling make it the perfectchoice for dropping into black-diamond terrain and hitting technical features at race pace. From peak to podium, the Mach 6 Carbon is enduro performance, redefined.
Features
- Designed for a 160mm fork with an offset of 44mm
- Full carbon frame featuring leading-edge carbon fiber materials and Pivot’s proprietary hollow-core, internal molding technology
- 155mm of renowned dw-link® suspension rear and 160mm front travel
- Pivot's size-specific long and low enduro geometry (Medium, Large and XL sizes)
- Cold-forged,wide and stiff linkages with Enduro Max Cartridge Bearings
- 12 x 148mm Boost rear spacing for maximum stiffness and control.
- Custom-tuned Fox Float DPX2shock with EVOL
Specification
- Frame Material: Carbon
- Wheel Size: 27.5"
- Rear Shock: Fox Float DPX2 (155mm Travel)
- BB Type: Press-fit BB92
- Rear Axle: 12x148mm Boost
- Headset: Zero Stack 44mm Top / Zero Stack 56mm Bottom
- Cable Routing: Internal
- Seatpost Diameter: 30.9mm
- Dropper Routing: Internal
- Max Rotor Size: 180mm

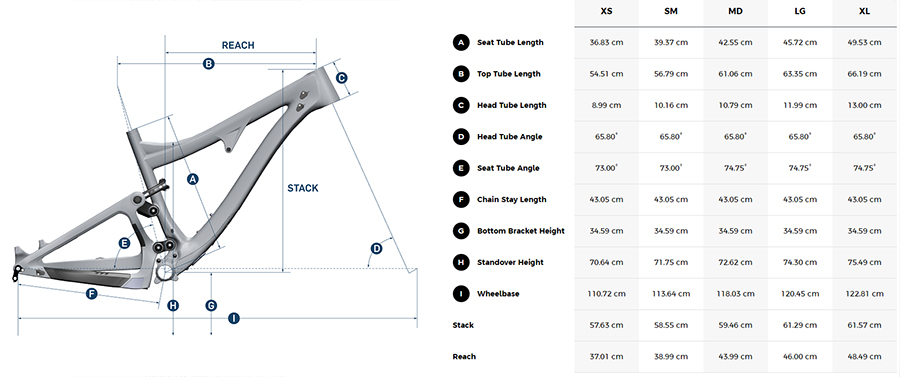

Geometry
