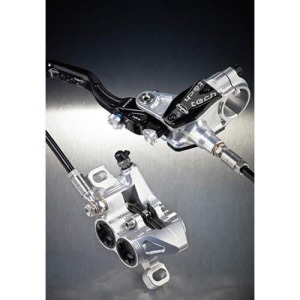

Hope Tech Evo M4 Disc Brakes

 TECH EVO LEVER
For 2012 the lever pivot has been slightly shortened which translates to a 15% increase in power. The Tech Evo lever now has a roller fitted to the cam mechanism, further enhancing the smooth feel of the lever.

Ambidextrous ?flip flop? design, CNC machined from a solid billet of 2014 T6 aircraft spec aluminium alloy - with a split clamp to allow easy set up and choice of positioning.
Redesigned piston, lever and pivot assembly with external ?on the fly? reach and bite point adjustment dials. The lever linkage eliminates freeplay in the lever giving a consistent and reliable feel to the brake. Further developments include bearing lever pivots for smooth, rock free use and increased lever ergonomics with a perforated lever for extra grip and feel. Also, a double sided reservoir lid makes for easy bleeding.
The brake is supplied with a choice of either hi tensile polyester reinforced or Goodridge stainless steel braided hose.

M4 CALIPER
The one piece caliper is CNC machined from a solid billet of 2014 T6 aircraft spec aluminium alloy. The M4 caliper uses four identical 16mm phenolic pistons which gives more usable power to the brake, whilst keeping our ledgendary "feel". A drip free bleed nipple and wide angle orientation of the fluid inlet connector have also been added, allowing for neater hose routing and cleaner servicing

• Tech Evo M4 - Specification
• CNC machined in Barnoldswick, England
• Externally adjustable Tech Evo lever
• 9.74 caliper with all mount options
• 2014 T6 aluminium alloy
• Wide angle hose connector mount
• Top entry pad fitting
• Fixed or floating rotor
• Black or braided hose
• 160, 183 + 203mm rotor sizes
• Weight: from 400g
• With it?s revised caliper and brilliant Tech Evo lever, the M4 offers a wide range of riders the power and adjustability they need.
